Question 51. The process of removing one-half the input signal to establish a dc level is called _____.

A. rectifier

B. full-wave rectifier

C. half-wave rectifier

D. filtering

Question 52. The absence of the Si or Ge and VD label on a diode denotes _____ notation.

A. approximate model

B. ideal model

C. exact model

D. None of these

Question 53. A Zener diode is in a _____ impedance region in the forward bias while it has a _____ impedance region in the reverse bias.

A. very large, low

B. very large, very large

C. low, low

D. low, very large

Question 54. The slope of the load line depends on the _____.

A. type of the diode used

B. characteristic curve

C. load resistor

D. source voltage

Question 55. The full-wave voltage doubler provides _____ filtering action than (as) the half-wave voltage doubler.

A. better

B. poorer

C. the same

D. None of these

Question 56. The load line is defined by the _____ and a characteristic curve is defined by the _____.

A. quiescent point, device

B. device, network

C. network, device

D. None of these

Question 57. In a half-wave voltage doubler, the voltage across output capacitor C2 drops across the load during the _____ half cycle and the capacitor is recharged up to _____ during the _____ half cycle.

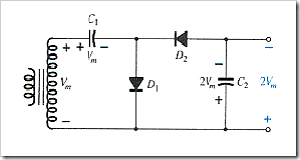

MCQs in Diode Applications fig. 26

A. negative, 2Vm, positive

B. positive, Vm, negative

C. positive, 2Vm, negative

D. negative, Vm, positive

Question 58. The source voltage must be _____ the voltage drop across the diode to conduct the diode.

A. larger than

B. smaller than

C. the same as

D. None of these

Question 59. A clamping network must have _____.

A. a capacitor

B. a diode

C. a resistive element

D. All of the above

Question 60. The combination of a short circuit in series with an open circuit always results in a(n) _____ circuit.

A. open

B. short

C. neither short nor open

D. unknown
