Solution: How much power reaches the antenna?

Problem Statement: Transmission and Antenna Systems

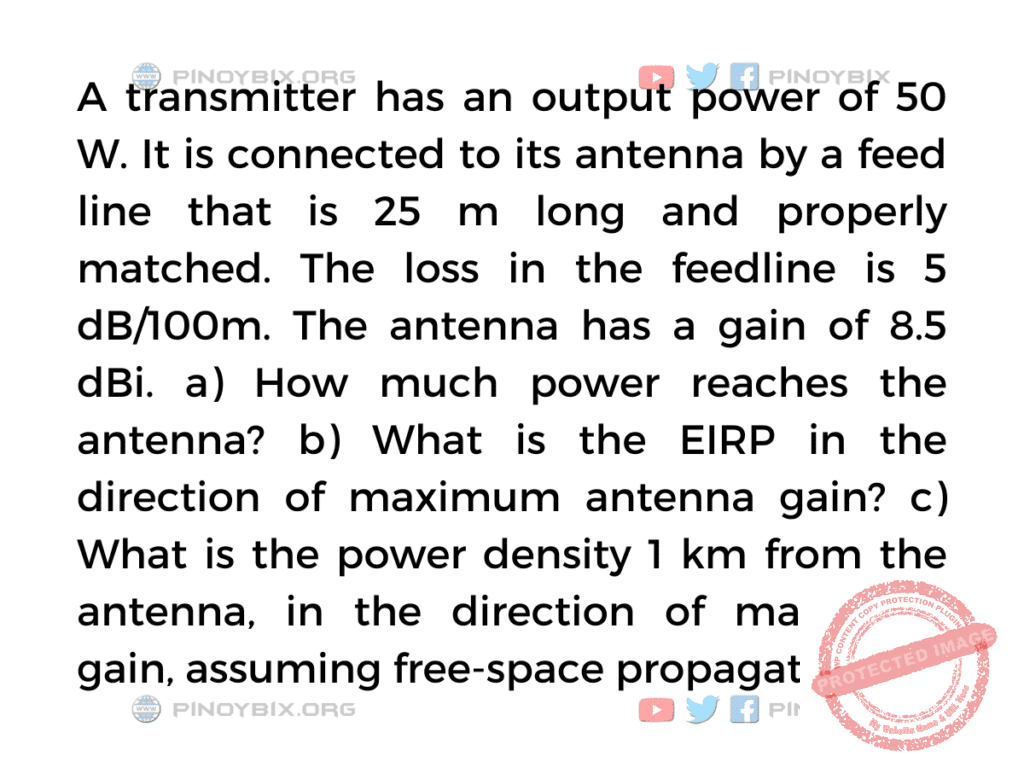

A transmitter has an output power of 50 W. It is connected to its antenna by a feed line that is 25 m long and properly matched. The loss in the feedline is 5 dB/100m. The antenna has a gain of 8.5 dBi.

a) How much power reaches the antenna?

b) What is the EIRP in the direction of maximum antenna gain?

c) What is the power density 1 km from the antenna, in the direction of maximum gain, assuming free-space propagation?

Problem Answer:

a) The power reaches the antenna is equal to 54.23 dBm

b) The EIRP in the direction of maximum antenna gain is equal to 133 W

c) The power density 1 km from the antenna, in the direction of maximum gain, is equal to 10.58 µW/m^2.

More Questions in: Antenna Problem

Series of Online Questions and Answers in Antennas

Online Questions and Answers in Communications Engineering per topic

Related Content

Lecture 11: Advanced Applied Optimization Problems in Differential Calculus: Business, Engineering, and Real-World Applications

This offer has expired! SubscribePREMIUM PROMO: Remove Ads!! Get Freebies!!! and Get EXTRA MONTHS before Time EXPIRED! Learning Objectives: By the end of this lecture, students will be able to: Apply advanced optimization techniques to complex business and economic scenarios including inventory management models, production optimization strategies, and pricing analysis for real-world decision-making processes Solve engineering design optimization problems systematically by minimizing material usage, maximizing structural efficiency, and optimizing heat transfer systems using differential calculus principles Master geometric optimization with constraints through isoperimetric problems, multi-variable considerations, and advanced constraint analysis techniques for complex spatial optimization challenges Implement physics-based optimization applications

Communications Engineering Mastery Test 5: ECE Pre-Board

This offer has expired! SubscribePREMIUM PROMO: Remove Ads!! Get Freebies!!! and Get EXTRA MONTHS before Time EXPIRED! This is 100 items set of Practice Examination 5 in Communications Engineering (Electronics Systems and Technology) composed of previous Board Exams Questions. Read each question and choice carefully! Choose the best answer. In the actual board, you have to answer 100 items in Communications Engineering within 5 hours. You have to get at least 70% to pass the subject. Communications Engineering is 30% of the total 100% Board Rating along with Mathematics (20%), General Engineering and Applied Sciences (20%), and Electronics Engineering (30%).

MCQ in Antennas Part 1 | ECE Board Exam

This is the Multiples Choice Questions Part 1 of the Series in Antennas as one of the Communications Engineering topic. In Preparation for the ECE Board Exam make sure to expose yourself and familiarize in each and every questions compiled here taken from various sources including but not limited to past Board Examination Questions in Electronic System and Technologies, Communications Books, Journals and other Communications References. Online Questions and Answers Topic Outline MCQ in Basic considerations MCQ in Wire Radiators in Space MCQ in Isotropic Radiator MCQ in Current and Voltage Distributions MCQ in Resonant and Non-resonant Antennas MCQ in

Solution: What is the length of an antenna one-half wavelength long

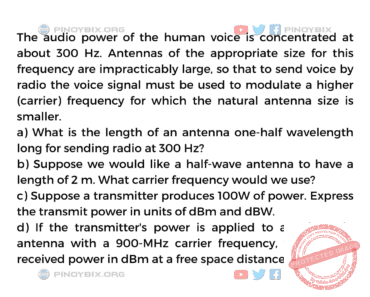

Problem Statement: Transmission and Antenna Systems Antenna Problem Solving The audio power of the human voice is concentrated at about 300 Hz. Antennas of the appropriate size for this frequency are impracticably large, so that to send voice by radio the voice signal must be used to modulate a higher (carrier) frequency for which the natural antenna size is smaller. This offer has expired! SubscribePREMIUM PROMO: Remove Ads!! Get Freebies!!! and Get EXTRA MONTHS before Time EXPIRED! a) What is the length of an antenna one-half wavelength long for sending radio at 300 Hz? b) Suppose we would like a
