#### Problem Statement: Electrical Engineering Professional Subjects

**Electric Circuits: AC Circuits Problem Solving**

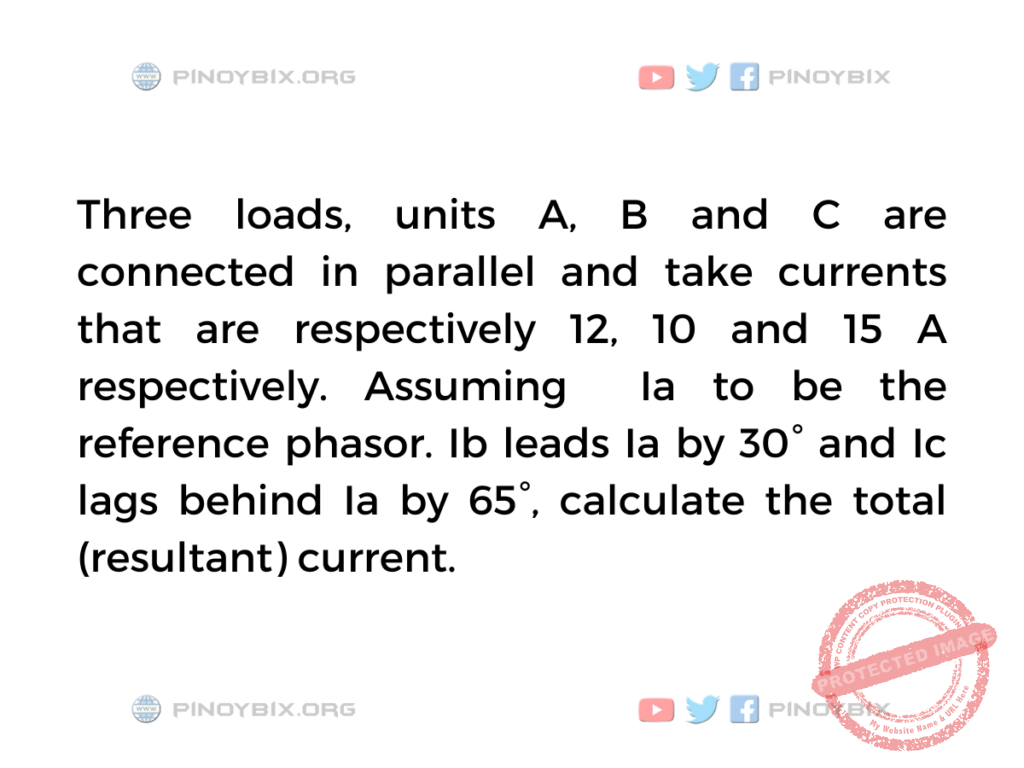

Three loads, units A, B and C are connected in parallel and take currents that are respectively 12, 10ย and 15 Aย respectively. Assumingย I_{a} to beย the reference phasor. I_{b} leads Ia by 30ยฐ and Ic lags behind Ia by 65ยฐ, calculate the total (resultant) current.

A.ย 28.33 A

B.ย 30.21 A

C.ย 26.46 A

D.ย 32.10 A

#### Problem Answer:

The the total (resultant) current is equal to **28.334 A**.
